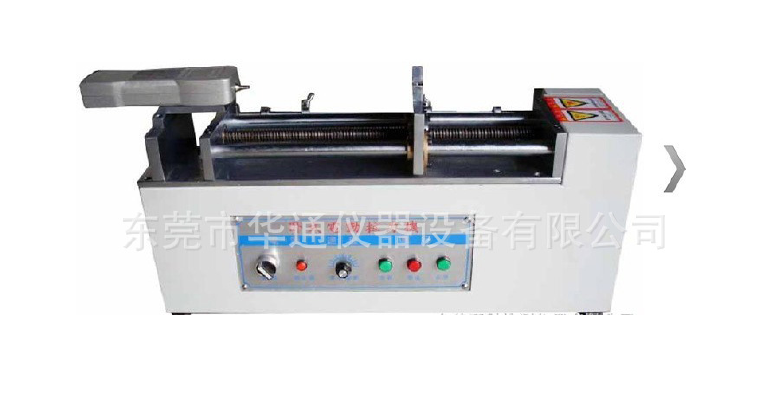

Table type tensile testing machine electric horizontal pulling machine
Scope of application: This machine is suitable for tension and compression load test in rubber plastic, thin film, composite materials, wire terminals, hardware accessories, scientific research institutions and other industries, equipment according to different products to configure the corresponding measuring fixture. Equipment compact and beautiful, low noise. Can be placed on the test table for the operation of the test, well received by the manufacturers.
1, measuring the range of tension: 0 ~ 50Kg (optional)
2: standard test fixture, one on each side (can be based on the actual product mix)
3, driving mode: electric driven horizontal
4, test speed: 0-300mm stepless speed regulation
5, there are left and right displacement protection device, can be very good to avoid damage to the instrument and the impact of the machine
6, drive stroke: 5 ~ 400mm adjustable
7, the force value display way: can adapt to all kinds of high precision digital display pointer push pull meter use
8, work power: 50Hz 1A AC220V
9, the size of the machine: 350mm*250mm*1200mm (W*L*H)
10, the machine weight: about 30Kg
