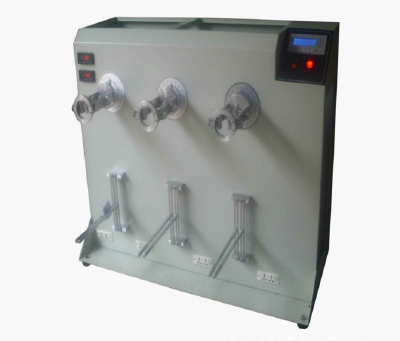

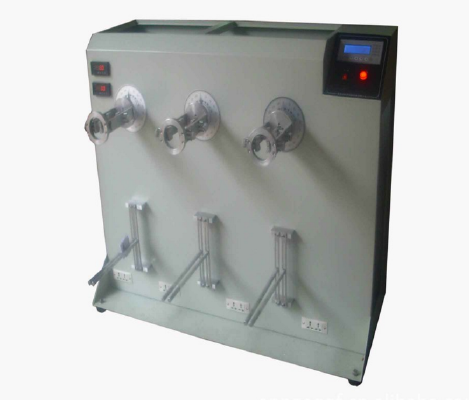

Multifunctional wire bending test machine, power line poppethead life testing machine, plug wire torsion life test machine: This machine in accordance with the provisions of the standard requirements of the "UL817" element and the power cord cords general safety. Applicable to the production and quality inspection departments for power cord, DC line bending test. For wire, cable and a variety of products in a certain speed, angle and weight, frequency and other circumstances to detect the product's resistance to fold and performance, etc.
1, fixture: 6 sets of work at the same time
2, swing angle: 45, 60, 90, 180 degrees (adjustable)
3, swing speed: 3-60 times /cpm digital display (adjustable)
4, counting function: 0 ~ 999999 (can be set)
5, load weight: 50, 10200300500g
6, the main function: each group were counted, broken down after the automatic shutdown, automatically save the data
7, accessories prepared: (manual, helper, six angle, weight)
8, power: AC220V, 50Hz, 10A
9, volume: 850*600*750mm
