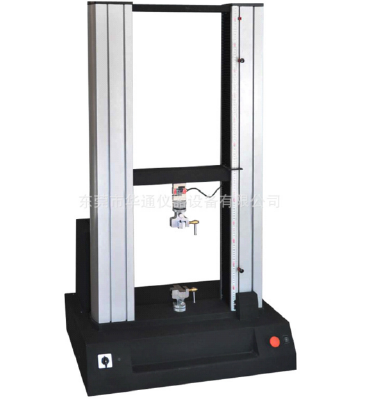

The tensile testing machine, with oriental motor, bearing, high quality wire rod as the transmission mechanism, which is designed according to the market demand for high-end large screen LCD digital display, microcomputer control system, mechanical structure and high performance as the theme. The whole machine with low noise, multi function, large power, simple operation, compact structure, high accuracy, complete function as the core. Mainly used for testing wire, metal, non metal, rubber, building materials, such as tensile, elongation, peel, displacement, tear, and other tests
1, maximum capacity: 2000KG
2, the maximum stroke: 0 - 600mm can achieve the test run conductive body parts Zero Distance to zero.
3, speed: 25-500mm/ adjustable per minute. digital display
4, fixture: according to customer matching
5, units: KG, LB, N can be switched
6, load accuracy: 1%
7, power system: AC inverter motor Huatong special transmission system
8, display: the use of LCD large screen digital display real-time value, maximum value
9, the use of microcomputer operating interface control is convenient and beautiful
9, the main function: overload, stop breaking, displacement, force value storage test. Maximum 12 values can be stored, and equipped with a micro print, print out the test report.
10, power: 50HZ 5A AC220V
